MICROSOFT
XBOX

CPU 733 MHz Intel Custom Pentium III
Front Side Bus 133 MHz - 1.0 GB/sec
RAM Micron 64 MB DDR SDRAM
Memory Bandwidth 6.4 GB/sec bus
Storage Medium 8 GB Hard Disk
(Western Digital, 5400 RPM)
I/O (Input / Output) w-5x DVD-ROM
Type 9 DVD - 8.5 GB single sided
4x Proprietary USB Game Ports (12 Mbps)
Broadband Ethernet Connection (100 Mbps)
Proprietary Audio/Video Connector
Graphics Processor Unit 250 MHz Custom-Designed NV2X
Max Polygon Performance 125 M/sec
Simultaneous Textures 4.8 G/Sec
Pixel Fill Rate 12w
Compressed Textures Yes (6:1)
Maximum resolution 1920 x 1080 (HDTV Required)
MPEG 2 Support Yes (Standard DVD)
HDTV Game Support Yes (HDTV Cable Required)
DVD Movie Playback Yes (DVD Remote Control Required)
Media Comm. Processor 200 MHz Processor Custom
Designed By NVIDIA
Controls Hard Disk & DVD
Controls High-Speed Ethernet
Controls Proprietary USB Game Ports
Controls Advanced Audio which uses:
licensed technology from UK's Sensaura 3D.
Peripheral Bus (MCP BUS) 400 MB/s (Full Duplex)
Broadband Enabled Yes (10/100 Mbps / TCP/IP / WinSock)
Audio Channels 256
3D Audio Support Yes (64 3D channels)
Operating System - Windows 2000 Core OS
(Custom designed by MS)
- DirectX 8.0a (Drivers)
- Part 1 of the OS is on the hard disk < 1 MB
- Part 2 of the OS can be DVD disc < 500 K
- (Part 1 includes the core OS, DirectX, DVD playback, some drivers and 3D user interface)
- (Part 2 includes things like libraries, other drivers and other features needed by the developer)
- OS takes less then 3 MB in RAM
- The OS has a 3D user interface when no games are inserted to play music CDs, run DVD movies etc.
- The games run in ring 0, known as kernel mode which is the fastest mode possible.
V-CHIP Parental control on DVD's with ESRB ratings
Size Width: ~31cm
Depth: ~27cm
Height: ~10cm
Total Internal Components 800

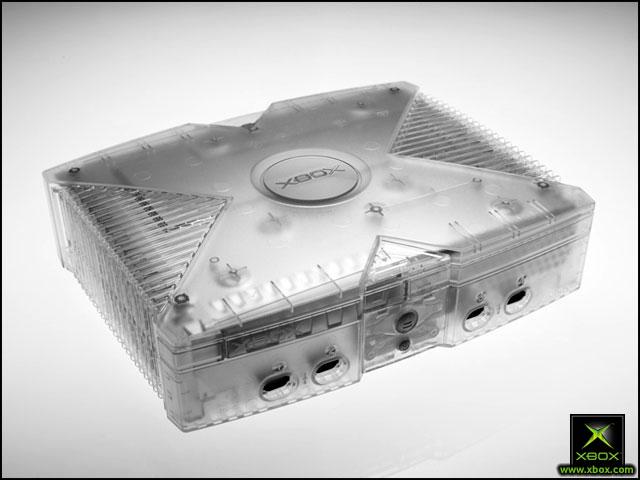

XBOX CRYSTAL
360

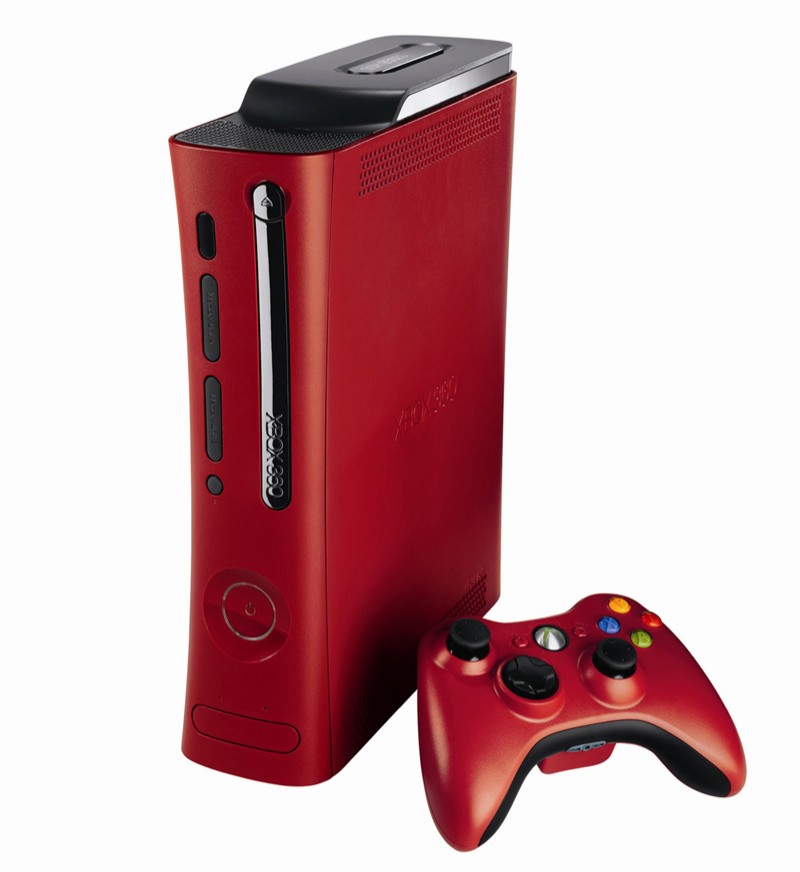

XBOX 360 RESIDENT EVIL EDITION
ONE
XBOX ONE

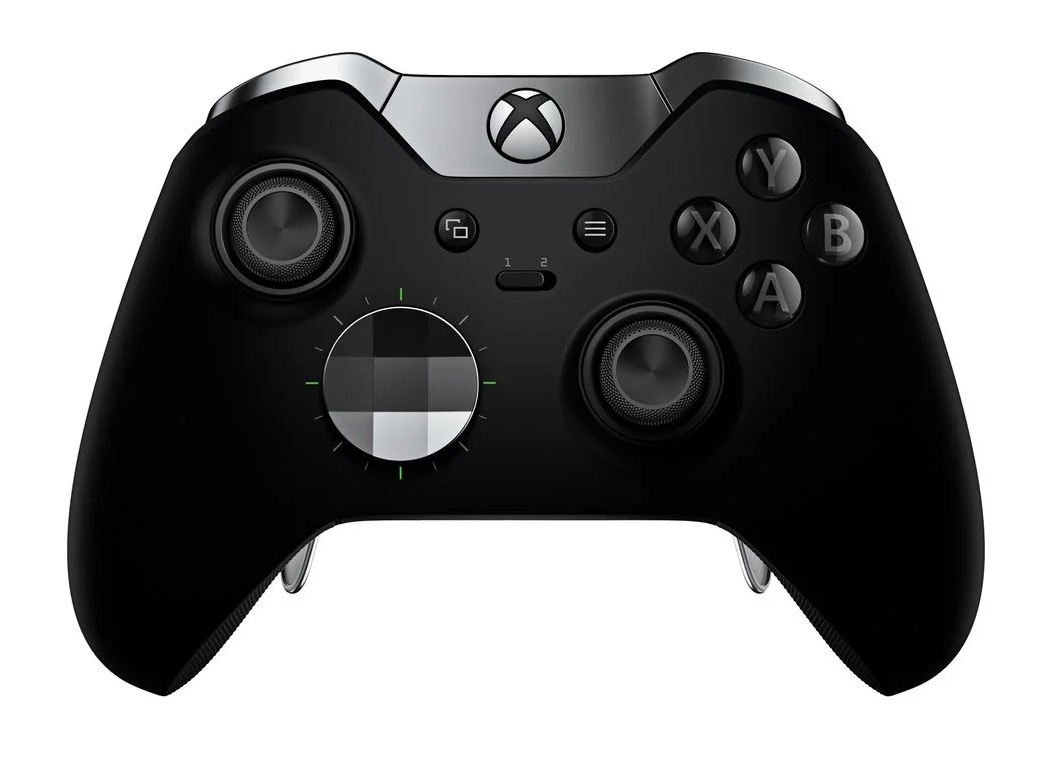

ELITE CONTROLLER
